Atlas · 9KBPX

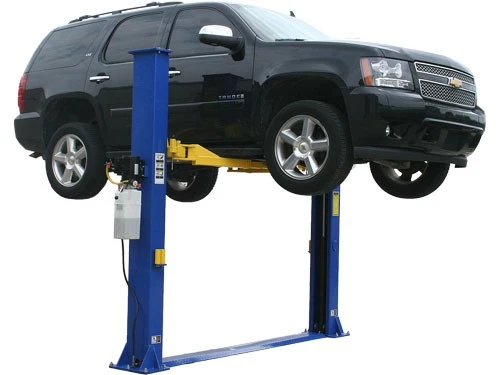

9KBPX · 9,000 lb two-post baseplate lift · WILL CALL
SKU: ATEXH-9KBPX
New- Two-post baseplate lift with open-top design for low-ceiling garages.
- Capacity: 9,000 lb. Symmetric arms with automatic arm restraints.
- Pickup only (WILL CALL). Coordinate pickup with J&L1 Tools.
Show moreShow less
- Dual hydraulic chain-drive cylinders; Secondary Lock System (SLS); dual-point lock release.
- Overall height: 111½ in. Overall floor width: 134½ in. Drive-through width: 101 in.
- Maximum lift height: 74½ in without adapters / 81 in with adapters. Minimum arm height: 4 in.
- Includes 8-piece truck adapter set and mounting hardware.
- Electrical requirement: 220 V, single phase; manufacturer recommends a 30 A breaker.
- Hydraulic oil: 3–5 gallons AW32/AW46, not included. Shipping weight: 1,400 lb.
- Manufacturer minimum concrete requirement: 4 in thick, rated 3,000 psi. Follow the installation manual.
- Manufacturer parts-only warranty: 2 years structural / 1 year hydraulic.
$3,499.00 USD
